In this YouTube video, I’m showing the process of building a vibrant and durable garden bench perfect for springtime, using just seven 2×4 studs.
Key learning points from the video:
— Selection of Materials: Emphasizes the importance of choosing kiln-dried, heat-treated 2x4s for durability and minimal moisture content.
— Attention to Detail: Highlights the need to select the best boards and edges for the seat to ensure comfort and aesthetic appeal.
— Measurements and Cutting: Demonstrates how to measure, cut, and drill with accuracy to ensure all parts fit together perfectly.
— Protective Painting: Stresses the significance of painting each piece before assembly to protect the wood from weathering and to add vibrant color to your garden.
— Assembly Tips: Offers practical advice on threading dowels, spacing slats, and securing the structure, including alternative methods for those with limited tools.
PATREON ►► https://www.patreon.com/wwmm
TOOLS I USE► https://amzn.to/2F3hxQc
FACEBOOK► https://www.facebook.com/WoodworkingForMereMortals
INSTAGRAM► http://instagram.com/steveramsey_wwmm
MAILING ADDRESS:
WWMM
448 Ignacio Blvd. # 237
Novato CA 94949
—————-
Woodworking for Mere Mortals® is a registered trademark of ZRAM Media, LLC.
#woodworking

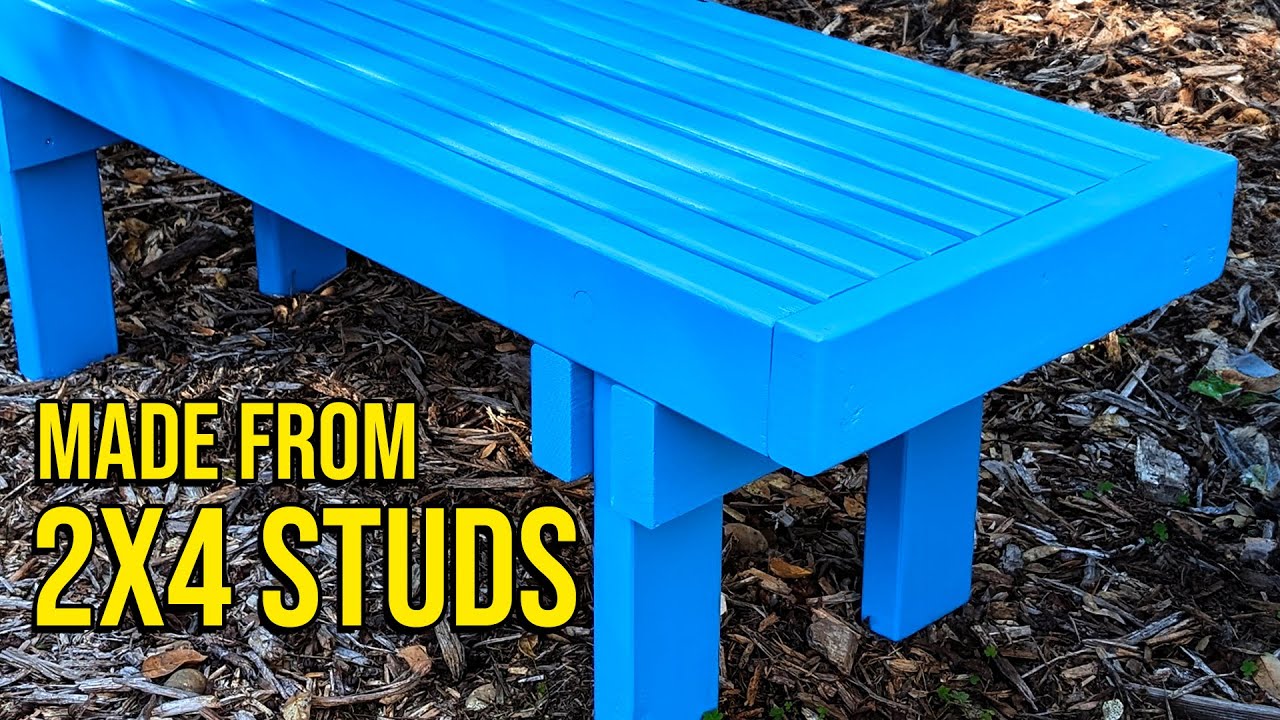

This colorful Springtime garden bench is easy to make it’s super sturdy and it only requires 7 2x4s to make if you’d like to make one of your own I’ve got planes available on a pay what you
Want basis see the link down in the description all right I’ve got seven 2×4 studs here when you’re picking out 2x4s for this project make sure that it’s labeled kdht Kil dried heat treated and
That means that this is much drier than the green 2×4 studs that you would use for framing out a house the most important part of this project is going to be the seat the part that you sit on so
I’m going to start with that what I want to do is look through these boards and find the best looking boards for that and then within those boards I want to pick out which Edge looks the
Best so that that can be up the kind of the butt friendly side of the board what I’m looking for are boards that are straight have nice looking grain that aren’t uh that don’t have any knot
Holes on them like this one here it’s got a knot right here so I would just want to make sure that that’s going to be on the underside of the seat and this is the side that you want to sit
On by the way if you’d like to make this miter station I’ve got plans available as part of my weekend Workshop course actually almost everything you see in my shop here is part of the weekend Workshop check it out over at the weekend workor
Docomo far enough for me to set up a stop block so what I’ve done is I’m just going to use this scrap of plywood and make an extension Pence now I can measure the length of these seat
Slats in this case I’m going to go 44 Ines and I can set up a stop block right here before I cut these slats to their exact length what I want to do is just cut a little bit off of the
Ends of these 2x4s the ends are usually kind of mangled a little bit and this will clean those up now I can just slide it down to where it’s touching that stop block and cut it to its final length
Over here at my drill press I need to drill a hole in the end of each of these boards and I want those to all be consistent so that I can thread a dowel through those so what
I’ve done is I’ve set up a stop block over here against this fence on my drill press table so that I can just line each of these up and then drill the hole in the same location
I’ve got the best Edge the part that’s going to be the top of the seat marked on each of these boards so I’ll make sure that that edge is always facing the fence that way in case
It’s a little off center this way they’ll still line up as long as they’re oriented the same direction also if you don’t have a drill press you could still make these reasonably accurate with a handheld drill just by drilling those first two holes and then taking your next board
And clamping clamping both of these together and then use that hole as kind of a template to drill all the way through and into the next one what I’m doing here is just putting a small
Piece of masking tape on the opposite side of that good Edge so that I can keep these oriented once I paint them now what I want to do is sand all of the top edges nice and smooth using 12 grit
Medium sandpaper this is a rare occasion where those rounded edges of 2x4s actually comes in handy all I need to do is kind of smooth them out and round them out a little bit more one of the most important things about building this project is to paint it as you go because
It’s would be very difficult to paint this all once it’s assembled and although the kind of the whole conceit of this project that is that it’s a brightly colored project for spring the paint also holds a more important purpose and that’s to protect the wood from the elements from the
Harsh sunlight and from rain snow or whatever else you’ve got I really believe that probably the best protection you can provide wood Outdoors is going to be an exterior latex house paint the last one of these benches I made made was about 10 years ago and I have never had to repaint it
And it’s only just now starting to flake off which is probably about what you would expect when you if you painted your house but really I just like having a really bright pop of color in the garden
Like this and the most important part of this is to make sure you paint this ingrain really well and seal that up cuz that is is where most of the water any water is going to get absorbed
Through that ingrain I can paint the other side when that’s dry of course there’s no reason why you couldn’t use you know a fancier nicer wood you could use like Redwood or cedar or some sort of
Outdoor specific type of wood and you could finish it with a clear coat or even like a a deck stain or something would work the only drawback to that is those are all going to be maintenance finishes
In other words really every year you’re going to have to reapply that finish if you want it to provide any protection and let’s get real you’re not going to do that are you I know every time I
I finish something for the for an outdoor project and I know that and I always tell myself well you know every spring or maybe every other spring I’ll just get out there and I refinish it never happens but hey maybe you’re more diligent than I am plus look at that
Blue I mean that’s awesome looking I cut out a couple of 3/4 in dowels to thread through these holes I think what I’ll do is flip these over one thing I did was I sanded these dowels down a little bit so that they would slide in easier
So I think what I’m going to do is just kind of thread them through like this then space them apart okay also I think I’m going to draw a line here along that dowel something like that so ultimately
These are going to be spaced about a quter inch apart you know I could probably just eyeball it but I’m going to use a couple of these boards as spacers here so I’ll just start on one end
And get these together and then what I’m going to do is secure the slats to the dowels using a screw all right this is called a Japanese flush trim saw if you don’t have one of these a hacks saw blade works really
Well I set up another stop block so I can cut the four legs all to the same length and then the four- leg connectors I’ll attach these incaps with 3-in deck screws right into that ingrain the leg assemblies are going to look like this in order to do that what I’m doing is
I’m taking the Cross piece and lying it laying it this way with the paint up and then let’s see I can use this piece to just kind of rested on and I’ve got this
Board which is 3/4 in thick just scrap that I can use to line this up 3/4 of an inch in from the end of that cross piece and I can also use it to line it up with the
Top back over here at my drill press I need to bore two holes towards the ends of each of the remaining twole connector pieces each of these holes is going to be just a little over halfway deep these are the holes that are going to attach the seat if you’re not familiar with
Drill presses they have a depth stop on it so in this case I set it to stop when it reaches that point and I’ve got my stop block on my fence set up over here here so that each of
These will be in the same location these are pretty important that these are in the right location so that they line up with the slats that they’re going to drive into and I need to drill three holes along the edge of this Center stretcher I also want to point out
That an alternative method of attaching the legs to the seat is to use pocket screws and that’s originally how I was going to do this I’ll leave that alternative in the plans but I wanted
To show how to do it without a pocket hole jig in case you don’t have that and if you already have a drill and this procedure also you don’t have to use a drill press just use a handheld
Drill and get it reasonably straight in the plans I’ll show both ways of attaching this both with these holes or with the pocket screws now what I can do is attach the stretcher to the leg cross
Piece I’ve made a mark in the center there I’ll just line this up this way and I’ll clamp it down now I can attach this stretcher assembly to the leg assemblies and one thing to point out is that those screws are staggered so I want to
Do the opposite of those on this side so that these don’t run into those in case you had any doubts this thing is really sturdy and by sturdy I mean heavy so if all goes according to plan this Center stretcher here should line
Up with that Center slat and by God it does now I just need to center it this way I’ll attach it using those 3-in deck screws and now you can see that whole idea of drilling
Those wide holes is just so that I don’t have to have like 6in long screws this part isn’t really completely necessary but if you want to really finish this off nicely you can plug these holes before I apply a final coat of paint I’m going to lightly sand everything down this will just
Make the surfaces feel nice and smooth I wanted to get this completely painted before I called it quits for the day just so that it would have time to dry completely overnight and of course the problem here is that the surfaces that would be touching this paper would get stuck to that
So what I have are these little blocks like this that I just have a screw driven through these and so it’s just a tiny point of contact so that after I painted all those Underside surfaces including the bottoms of those legs that I could just set these up on that and then I
Can continue to paint the rest of the project hey I want to put in a quick plug for my podcast if you haven’t heard it in a while or if you’ve never heard it it’s called creative culture it’s all about creativity and creative people and how they affect our culture I absolutely
Love doing that podcast it’s so much fun and it’s so interesting to talk to such a wide range of creative people I’ll put a link down in the description if you want to check it out I want to give a big heartfelt thanks to all of you who support
This show over on patreon it’s your support that helps to keep my videos sponsor free I really appreciate all your help thanks for watching everybody for
