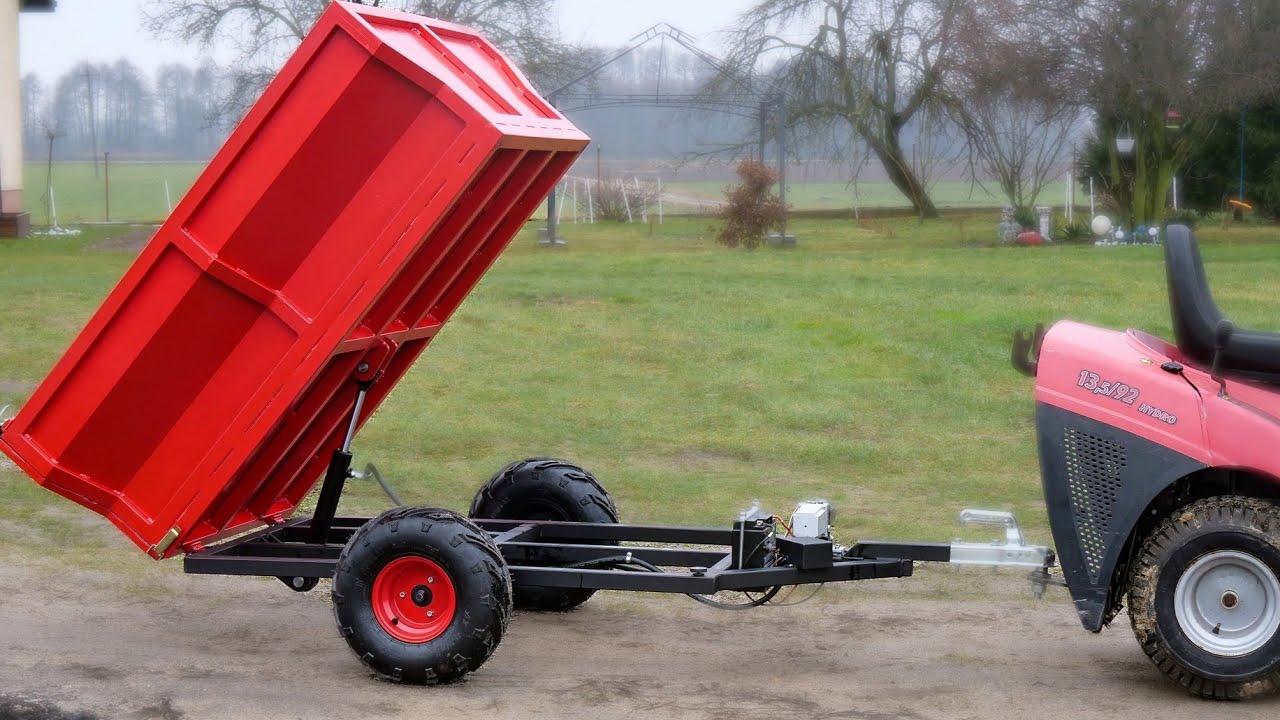

Making Dump Trailer with independent Power Hydraulics 12v



I used a 12v hydraulic power supply that comes from a tail lift from a small van, The power supply has a built-in section divider, which makes it easy to install. To control the power supply I used a relay and a 12v winch pilot and receiver, and a 12v 20ah gel battery.
The hydraulic trailer can be attached to any vehicle, mower tractor, quad and car. Dump trailer the maximum weight it lifts is about 400 kg, limited by the strength of the wheels, if not for the wheels, it would be possible to easily transport and unload larger loads

46 Comments

  1. ggrepoman

    Great build and craftsmanship. Now I'm guessing the location of the ram is due to the length of its stroke and a possible need to tip it straight up, but if positioned so that the ram is closer to the front it would allow for heavier loads to be dumped, while simultaneously reducing the power needed to raise and lower the tipper save your battery and pump. But in the end it works and for diy that's all that matters. Thumbs up from me.

  9. Albert Salas

    I'm like a kid again with some grown boy toys lol 😆 saving this vid. I'm gonna make one now.

  17. Wingnut Stickman

    Couple ideas to improve — Build a hanger on the front face to hold the tailgate when it is not installed. And Install chains on the tailgate so you can limit the opening and control the spreading of product, like a dump truck does, Excellent video! Thank you for sharing!

  19. CUORPO ANTONIO

    Maestria unica amico. Da manuale, peccato che per me è irraggiungibile fare quello che hai fatto. Ma come lezione per apprendimento è veramente unica. Grazie

  21. Nitesh Tutor

    Hi sir
    Kya aap ka youTube video editing kar sakate hai sir
    Ham se ek video editing karwaa sakte hai sir
    Ham aap ko video free main editing kar ke dege sir
    Aap ko video editing achaa lage to ham se karwaa sakate hai sir
    Aap ko jitnaa paisa ya fee denaa hai dijiyega
    Please sir ham se ek video editing karaa kar dekhiye
    Please sir reply dijiyegaa
    🙏🙏🙏🙏🙏🙏🙏🙏🙏🙏🙏

    Name : nitesh kumar
    Qualification : 12th pass student

  23. Bob W

    Excellent design and build, however I would have place the axle about 100mm towards the rear to put some weight on the draw bar to give your little tractor more grip. From Australia

  24. Paul

    you should put a 7 pol outlet on the tractor and a cable on the trailer so the battery always charged by the tractor:)

  27. Меркуловы life

    очень классный прицеп получился, как называется такой поршень? продаются ли готовые комплекты частей?

  30. John Russell

    Exceptional fabrication. I see you have bunches of high-end tooling machinery, but you obviously also have the knowledge to operate them. Best work I have seen in a long time!

  37. Phil

    You went from making your own wheel hubs to buying cheap hinges and latches. And then the self tappers! Ugh, awesome build, but damn bro.

  40. 4tra

    i don't know why but i rather do it with external power source. make like trailer socket. because charging battery… im to lazy 😀 over all great job and amazing project… looking for your future builds

  43. darek drożdż

    Niezła robota, właśnie sam szukam mechanizmu wywrotu do mojej przyczepki. Mógłbyś podpowiedzieć gdzie kupiłeś ten silownik i pompę elektryczno-hydrauliczną???
