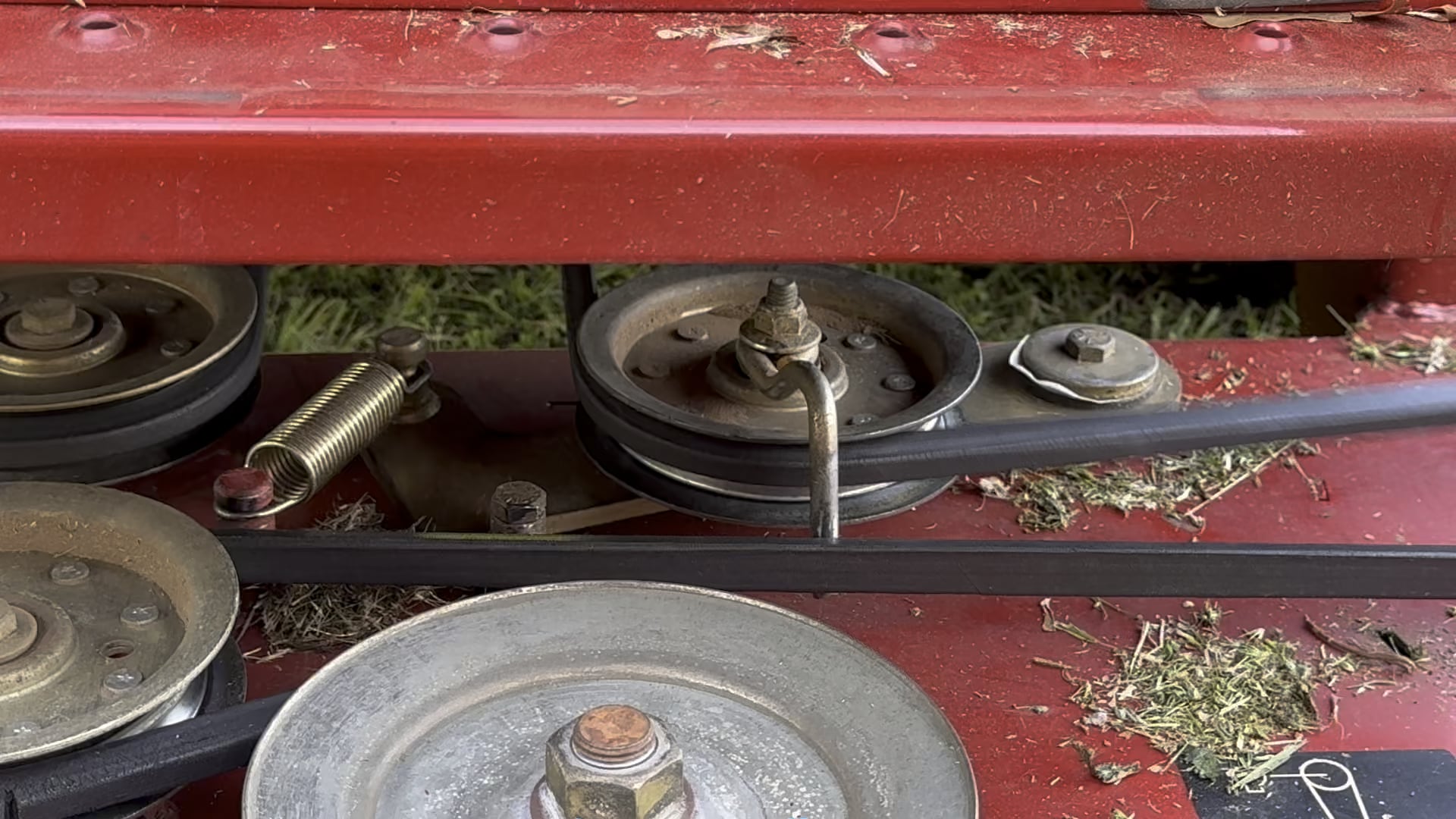

Either the bolt holding the tensioner to the deck is loose or the spring has lost its sprung
ChaoticDad21
Idk anything about Toro, but just dealt with a sort of similar issue on JD. Looks like you need to tighten some bolts tho
IsleOfOne
That pulley is clearly loose
Phil-lated
Are you sure that belt is ran correctly?
Just seems like the tension spring isn’t actually right.
Major_Turnover5987
There is a known defect in Toro decks where the metal cracks where that pulley is attached. There is no long term fix.
theshaneshow49
Belt might run incorrectly it hitting the post on the center of the deck looks to been doing that for awhile you can see marks in in it
Sapere_aude75
From the perspective this video was taken- check the pullies that are forward out of view(like underneath the engine) and to the right out of view(edge of mower deck pulley). Basically check the pullies connected on either side of the belt from the tensioner. You might have a bent pulley, failing bearing, loose pulley, etc causing the belt to go out of alignment and shake. I don’t actually think it’s the tensioner here, but it could be.
Whiskeyhorseman
Stop buying belts on Temu
Kr1sys
Tension? Where?
verugan
When we had troybilt pony this was a constant issue. We ended up selling it.
